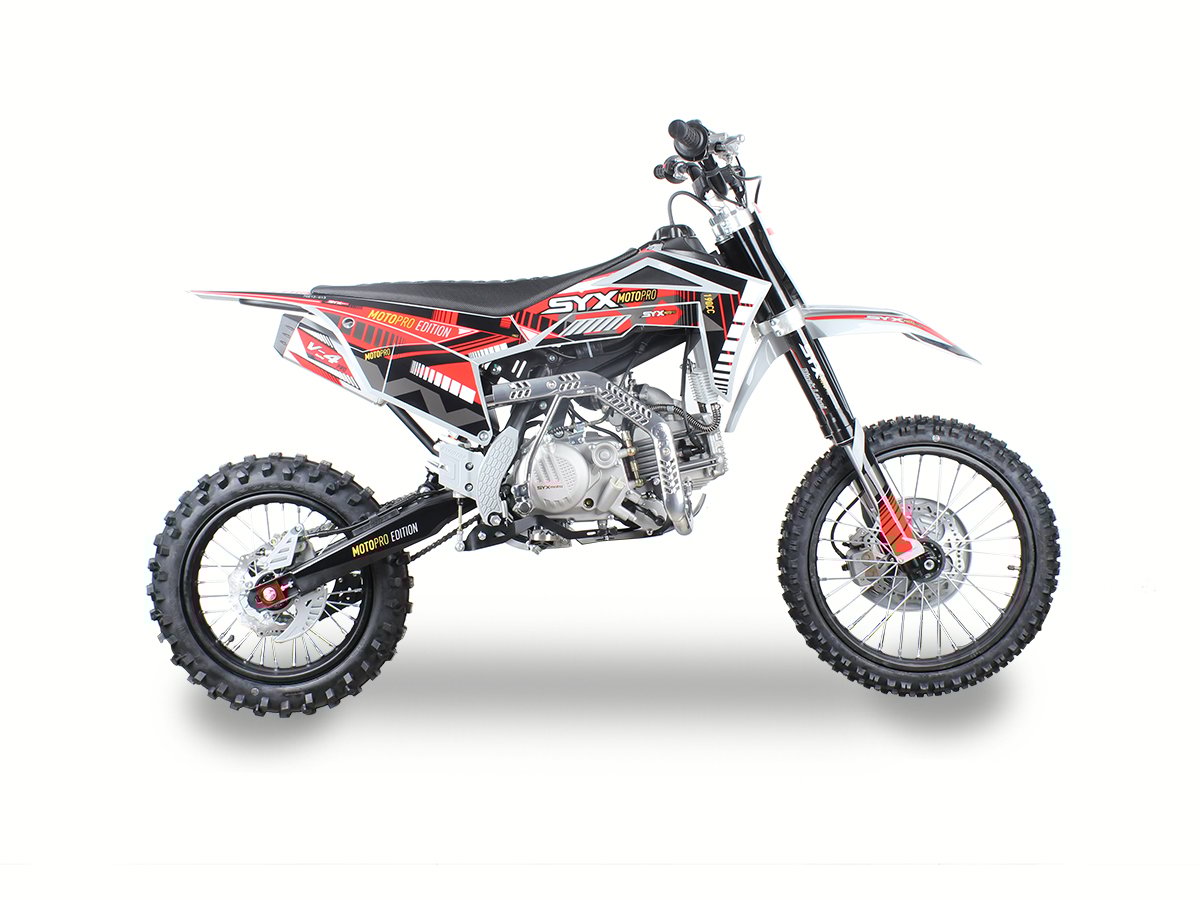

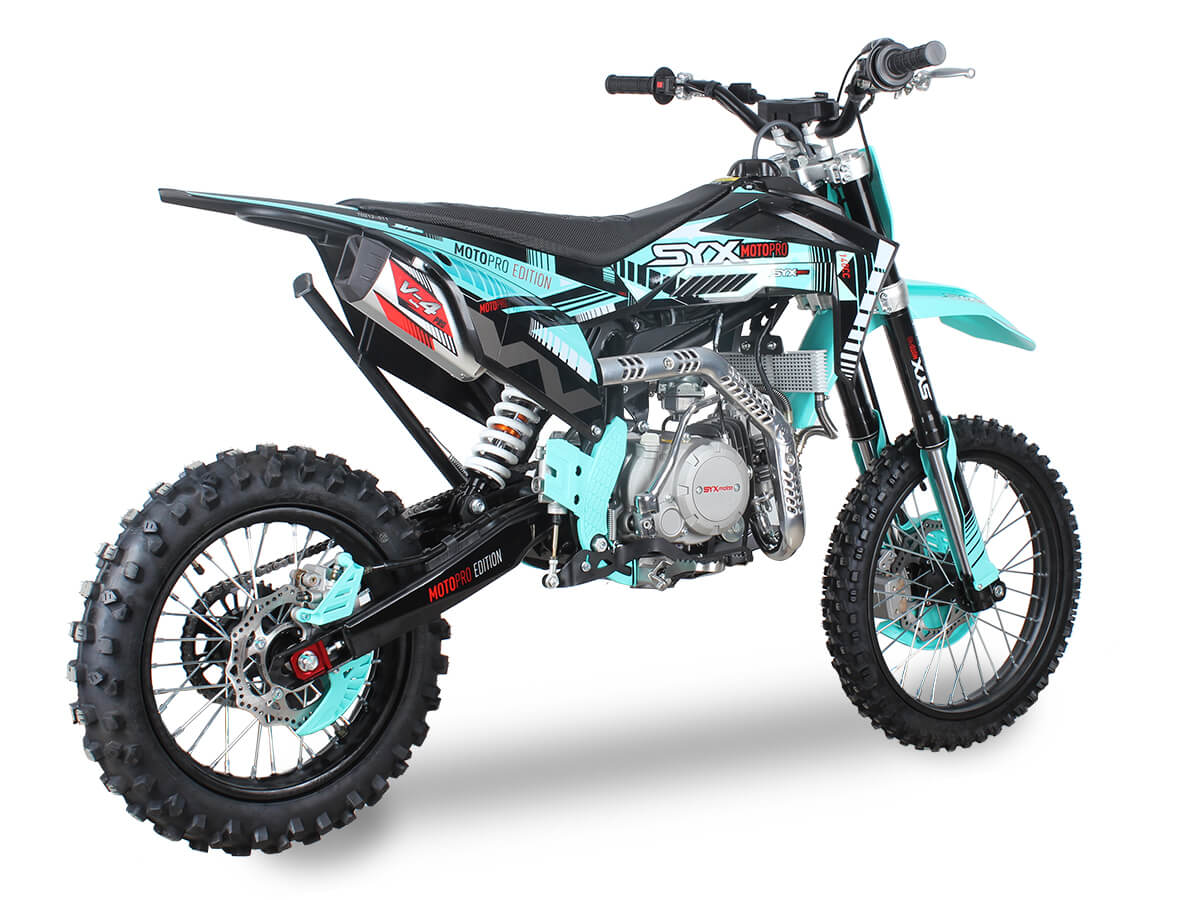

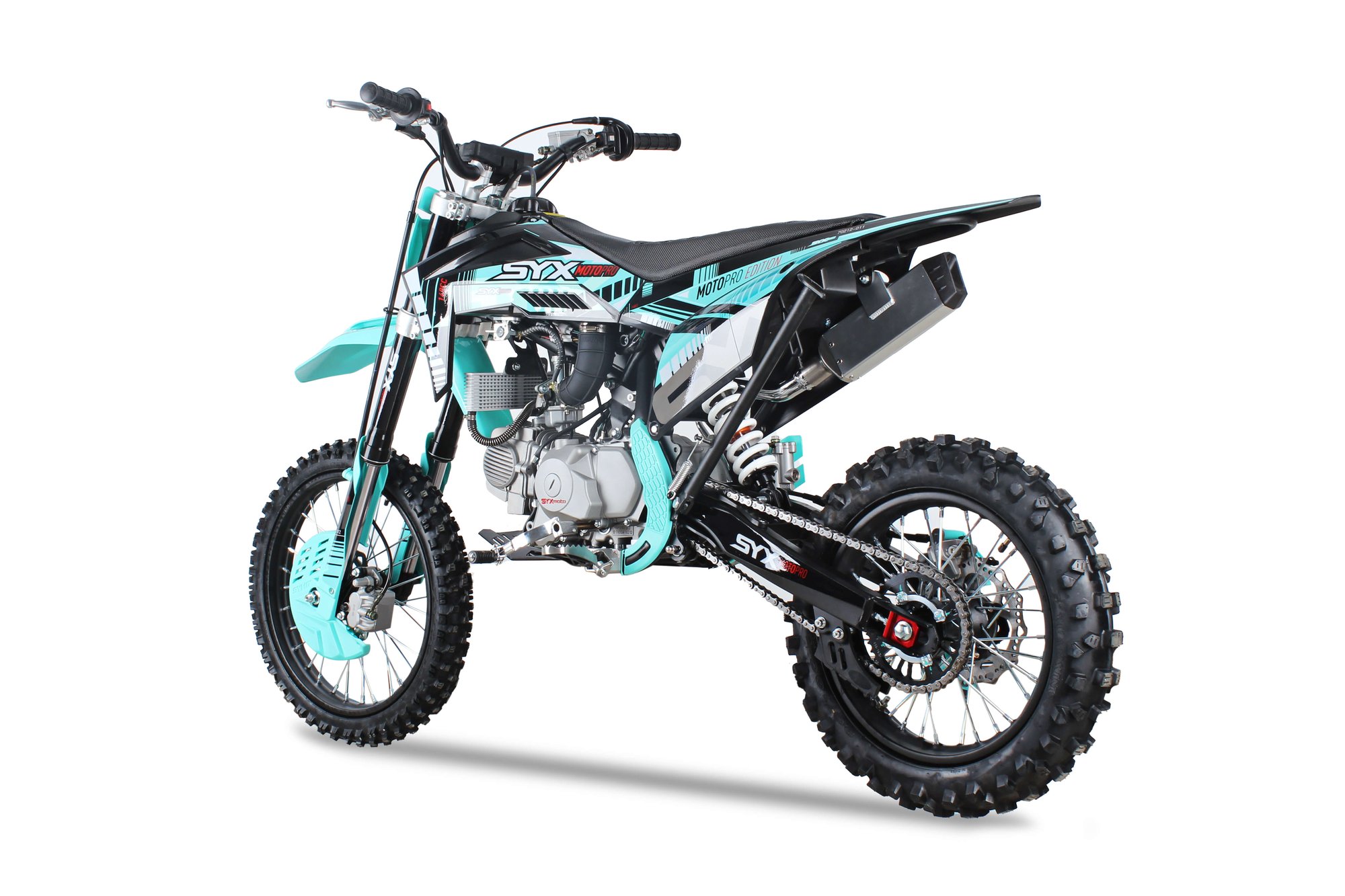

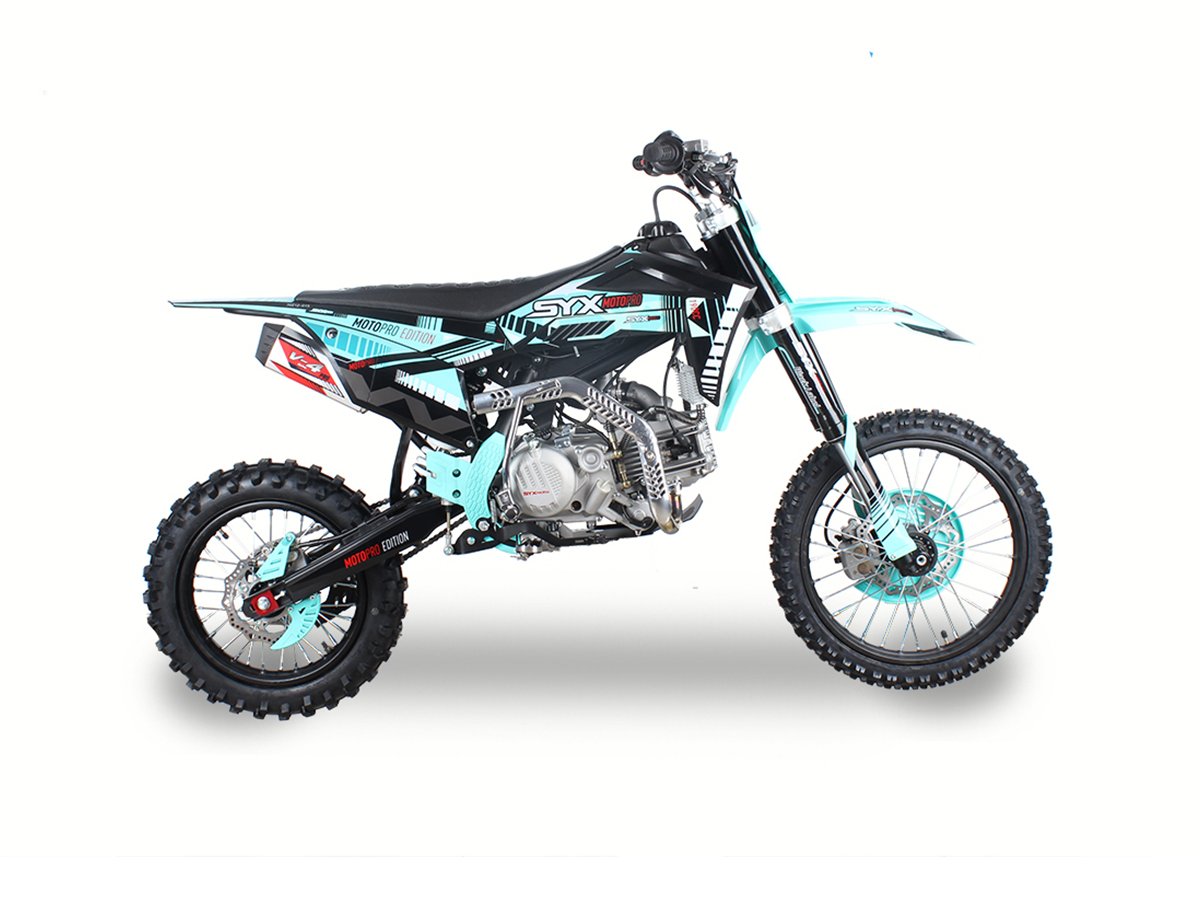

V2-190(PAD190-V2)

Engine ZS 190cc,air cooled engine with remote oil cooler
Transmission Manual
Drive type Chain
Belt and/or chain size 428-116 Chain
Starter System Electric/kick
Fuel system Carburetor, 48 mm
Brakes (Front/Rear) F:hydraulic brake with 220mm Disc rotor, double piston calliper; R:hydraulic brake with 190mm Disc rotor, single piston calliper
Tire size(Front/Rear) 70/100-17 YuanXing Off Road Tire Deep-teeth pattern R: 90/100-14 YuanXing Off Road Tire Deep-teeth pattern
Wheel size and type(Front/Rear) F:1.6-17 black steel rim, heavy duty spokes, aluminum hub with 15mm axle;R:1.85-14 black steel rim, heavy duty spokes, aluminum hub with 15mm axle
Fuel Capacity (in liters) 5.5 L
Gear oil type and capacity( in liters)
Battery 12V4AH
Lights N/A
Suspension(Front/Rear) F:Inverted Fork, Non-adjustable L=780mm R:SX Shock Absorber,Non-adjustable
Dimensions(in inches) Assembled(LxWxH): 72*29.1*44.5, crated(LxWxH): 56.7*16.7*25.6, seat height: 33.9, wheelbase: 50.8, handlebar height 44.5
Weight 250 Lbs
Weight capacity 276 Lbs
Ground clearance (in inches) 13.19
Assembly required Handle bar,Footpegs Front wheel,,rear shock- bottom bolt,front fender,number plate?rear fender,front fork guard,gear shift?front fork
Special features YX 190 Electric engine, 4 speed manual,SY V2 Double Tube Cradle Frame side cover,SY Steel Swing Arm Knife-Shape?Built-in air filter,SY New Muffler+Chrome Pipe With Anti-scalding Sheet,SY New Forged Triple clamp,New appearance of plastic kits,Front brake c
EPA approved EPA approved
